Centru de prelucrare -stoc Firma
18-11-2020 00:43 Fier & Industria grea Cluj-Napoca 449 vizualizări42.000 €
Locaţie:
Cluj-Napoca
Preț:
42.000 €

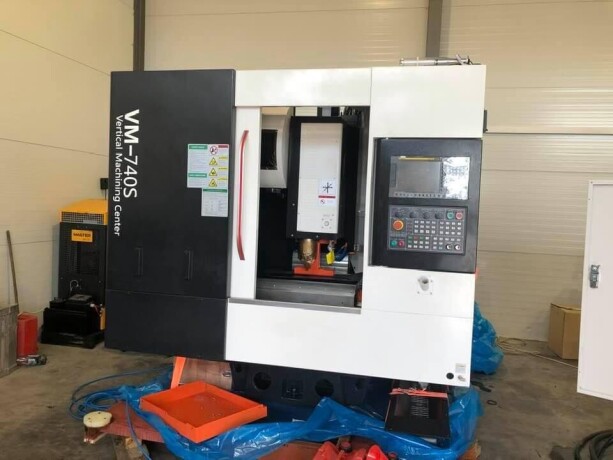

Centru de prelucrare WERNER-NEWAY VM740S
Worktable;750×420 mm;
Travel(X/Y/Z)
650/420/500
mm
Spindle speed 10~10000 rpm
Cutting feed speed 1~10000 mm/min
Tool magazine capacity 20T
Max. load capacity 400 kg
Spindle motor 5.5/7.5 kW, Spindle taper BT40;
Rapid feed speed(X/Y/Z-axis) 36/36/30
Positioning accuracy (X/Y/Z-axis):0.008/0.008/0.008 mm
Repeatability (X/Y/Z-axis):0.005/0.005/0.005mm
Power capacity:15 KV A,
Cooling tank capacity:160L
Machine Dimension (l ×w ×h): 2020×2320×2700m
Net weight:4000kg
Worktable;750×420 mm;
Travel(X/Y/Z)
650/420/500
mm
Spindle speed 10~10000 rpm
Cutting feed speed 1~10000 mm/min
Tool magazine capacity 20T
Max. load capacity 400 kg
Spindle motor 5.5/7.5 kW, Spindle taper BT40;
Rapid feed speed(X/Y/Z-axis) 36/36/30
Positioning accuracy (X/Y/Z-axis):0.008/0.008/0.008 mm
Repeatability (X/Y/Z-axis):0.005/0.005/0.005mm
Power capacity:15 KV A,
Cooling tank capacity:160L
Machine Dimension (l ×w ×h): 2020×2320×2700m
Net weight:4000kg
Alte detalii
Tip Anunt
Vanzare
Stare
Nou
Marca
Cnc
Model
Cnc
Garantie ?
Da
