Vanzare centru de prelucrare VM740s Firma
27-04-2021 13:43 Fier & Industria grea Cluj-Napoca 494 vizualizări42.000 €
Locaţie:
Cluj-Napoca
Preț:
42.000 €

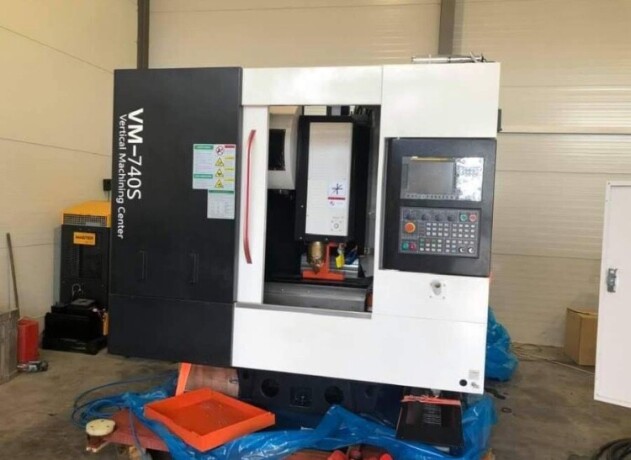

De vanzare centru de prelucrare VM740s
Worktable;750420 mm;
TravelX/Y/Z
650/420/500
mm
Spindle speed 10~10000 rpm
Cutting feed speed 1~10000 mm/min
Tool magazine capacity 20T
Max. load capacity 400 kg
Spindle motor 5.5/7.5 kW, Spindle taper BT40;
Rapid feed speedX/Y/Z-axis 36/36/30
Positioning accuracy X/Y/Z-axis:0.008/0.008/0.008 mm
Repeatability X/Y/Z-axis:0.005/0.005/0.005mm
Power capacity:15 KV A,
Cooling tank capacity:160L
Machine Dimension l w h: 202023202700m
Net weight:4000kg
Worktable;750420 mm;
TravelX/Y/Z
650/420/500
mm
Spindle speed 10~10000 rpm
Cutting feed speed 1~10000 mm/min
Tool magazine capacity 20T
Max. load capacity 400 kg
Spindle motor 5.5/7.5 kW, Spindle taper BT40;
Rapid feed speedX/Y/Z-axis 36/36/30
Positioning accuracy X/Y/Z-axis:0.008/0.008/0.008 mm
Repeatability X/Y/Z-axis:0.005/0.005/0.005mm
Power capacity:15 KV A,
Cooling tank capacity:160L
Machine Dimension l w h: 202023202700m
Net weight:4000kg
Alte detalii
Tip Anunt
Vanzare
Stare
Nou
Marca
Cnc
Model
VM740s
Anul fabricatiei
2018
Garantie ?
Da
